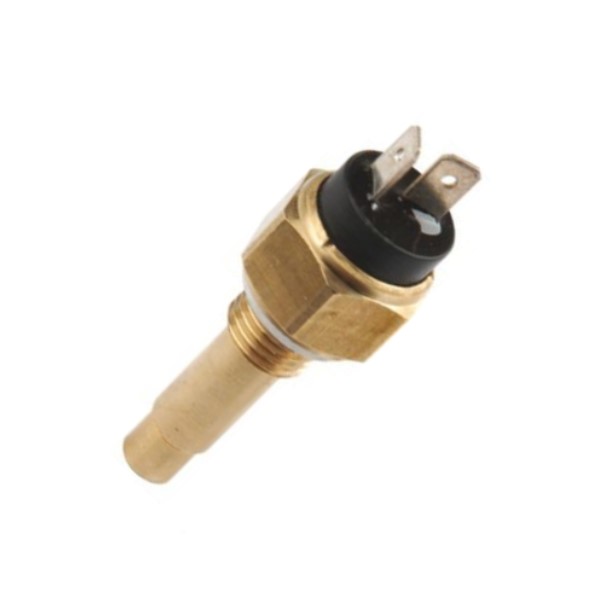

Picture of 323-803-004-002D - Temperature Sender/Switch - +40°C to +120°C - Switch 105°C - Thread M14X1.5

323-803-004-002D - Temperature Sender/Switch - +40°C to +120°C - Switch 105°C - Thread M14X1.5

Temperature Sender/Switch - +40°C to +120°C - Switch 105°C - Thread M14X1.5
SKU: 323-803-004-002D
Manufacturer part number: 323-803-004-002D
GTIN: 6007000026706
  • SKU : 323-803-004-002D
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Temperature Senders
  • Thread : M14X1.5
  • Temperature Measuring Range : +40°C to +120°C
  • Sender Resistance Range : 287.4 Ohm - 22.7 Ohm
  • Sensor Signal : 1 Pole Common Ground
  • Warning Contact : 105°C ± 3°C
  • Warning Contact Switch Capacity : 1.2 - 3 Watt Non-inductive
  • Warning Contact Features : Closes With Rising Temperature
  • Temperature Sender Connector : AMP Male T-model 6.3 x 0.8mm
  • Warning Contact Connector : AMP Male T-model 6.3 x 0.8mm
  • Sender Element Length + Thread (L) : 40mm
  • Sensor Diameter : 10.8mm
  • Temperature 100 °C > Resistance : 100 °C = 38.47 Ohm ± 2.98 Ohm
  • Torque : 20 Nm
  • Temperature Medium : Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
  • Minium - Maximum Operating Temperature : -40°C to +150°C
  • Weight : 0.1kg
  • Warranty : 12 Months
