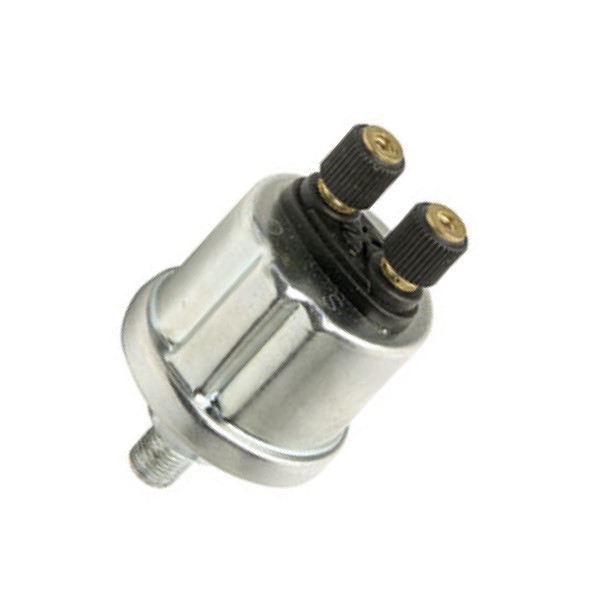

Picture of 360-081-030-049C - Pressure Sender Switch - 0 to 5 Bar - With Warning Contact - 1/8"x27 NPTF

360-081-030-049C - Pressure Sender Switch - 0 to 5 Bar - With Warning Contact - 1/8"x27 NPTF

Pressure Sender Switch - 0 to 5 Bar - With Warning Contact - Thread 1/8'X27 NPTF
SKU: 360-081-030-049C
Manufacturer part number: 360-081-030-049C
GTIN: 6007000029523
  • SKU : 360-081-030-049C
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Pressure Senders
  • Thread : 1/8" X 27 NPTF
  • Pressure Range : 0 Bar to 5 Bar
  • Sender Resistance Range : 10 Ohm to 184 Ohm
  • Sensor Signal : 1 Pole Common Ground
  • Warning Contact : 0.40 Bar ± 0.10 Bar
  • Warning Contact Switch Capacity : Maximum 5 Watt Non-inductive
  • Warning Contact Features : Closes With Falling Pressure
  • Pressure Sender Connector : M4 Plastic Knurled Nut
  • Warning Contact Connector : M4 Plastic Knurled Nut
  • Pressure Medium : Oil - Fuel - Air
  • Operating temperature: : -25 °C to +100 °C
  • Length Thread + Nut (L1) : 19.5mm
  • Thread Length (L2) : 11mm
  • Torque : 30 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.71kg
  • Warranty : 12 Months
