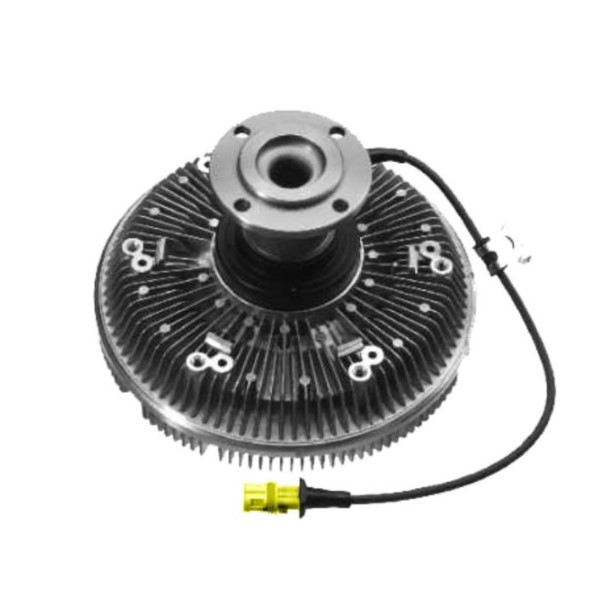

Picture of TVD119 - Electronically Controlled Fan Clutch For MAN TGA 18.360/18.410- Electric - Outer Diameter 270 mm

TVD119 - Electronically Controlled Fan Clutch For MAN TGA 18.360/18.410- Electric - Outer Diameter 270 mm

Manufacturer: MAG
Electronically Controlled Fan Clutch For MAN TGA 18.360/18.410/26.310/320/390/400/410/480/27.440/28.350/28.390/33.350/33.360/33.390/400/410/480/40.390/400/TGS I 19.360/400/24.440/26.360/400/440/32.360/33.360/400/480/35.360/41.400/480/TGX I 26.540- Electric - Outer Diameter 270 mm
SKU: TVD119
Manufacturer part number: OT-08004
  • SKU : TVD119
  • Brand : MAG
  • Product Portfolio : Cooling Components
  • Product Family : Fan Systems
  • Product Group : Viscous Drives
  • MAN TGA 18.360/18.410/26.310/320/390/400/410/480/27.440/28.350/28.390/33.350/33.360/33.390/400/410/480/40.390/400/TGS I 19.360/400/24.440/26.360/400/440/32.360/33.360/400/480/35.360/41.400/480/TGX I 26.540
  • Fan Side : Inner Diameter = 177 mm
  • Fan Side : Pitch Circle Diameter = 214 mm
  • Fan Side : 6 Holes
  • Engine Side : Pitch Circle Diameter = 90 mm
  • Engine Side : 4 Holes
  • Operating Mode : Electric
  • Voltage : 24 V
  • Weight : 8.56 kg
  • Material : Steel/Aluminium
  • Number of pins : 5 -pin connector
  • Outer Diameter: 270 mm
  • Warranty : 12 Months
